Home Graco 239888 Fire-Ball® 300 Series 50:1 400 lb (180 kg). Grease Pump
PART 239888

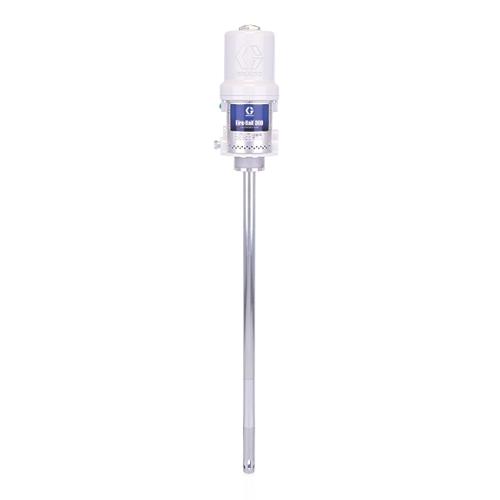

Graco 239888 Fire-Ball® 300 Series 50:1 400 lb (180 kg). Grease Pump

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps... Read More
Calculating price...
QUANTITY

About this item

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
  • Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated ""dirty"" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
1019_Manual_308883
1019_Manual_308883.pdf
Type Pneumatic Piston Pump
Pump Ratio 50:1
Power Type Pneumatic
Air Inlet Size (in) 3/8
Fluid Outlet Size (in) 1/4
Model Fire-Ball
Series 300
Air Inlet Size (mm) 9.525
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Air Motor Effective Diameter (in) 3
Application Industrial
Cycles Per Gallon 345
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Inlet Type Slotted
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
For Use With Grease
Maximum Air Consumption (SCFM) 22.8
Maximum Air Inlet Pressure (bar) 9.65
Maximum Air Inlet Pressure (kPa) 965
Maximum Air Inlet Pressure (psi) 140
Maximum Continuous Cycle Rate (CPM) 76
Maximum Intermittent Cycle Rate (CPM) 76
Maximum Working Pressure (bar) 580
Maximum Working Pressure (kPa) 58000
Maximum Working Pressure (MPa) 58
Maximum Working Pressure (psi) 8400
Sound Power Level (dB(A)) 85.6
Sound Pressure Level (dB(A)) 77.8
Weight (kg) 0.9988
Weight (lb) 22
Wetted Material Steel;Brass;Aluminum;Acetal;Nitrile Rubber;Polyurethane
