Home Equipment & Storage Pumps & Packages Graco 241906 Husky 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation/Transfer, Water, Antifreeze, Windshield Wash Fluid
PART 241906

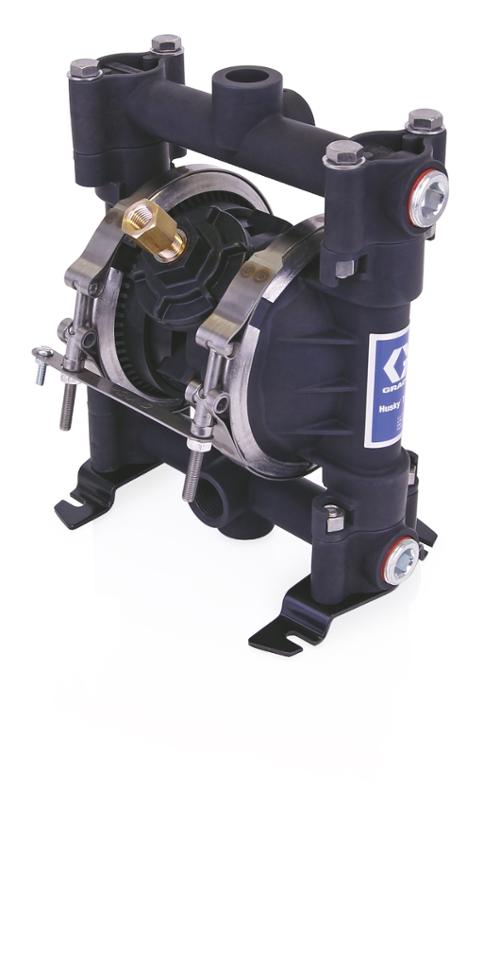

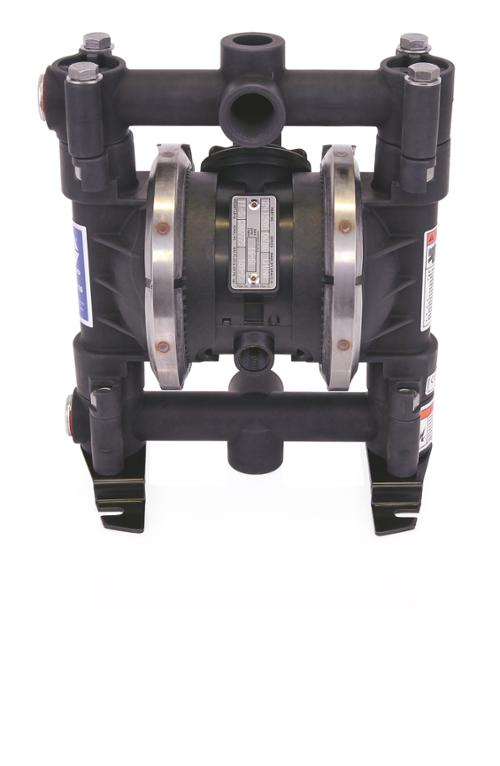

Graco 241906 Husky 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation/Transfer, Water, Antifreeze, Windshield Wash Fluid

The Husky 716 air operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of fluid and features center and end porting options.Center- and end-portingNo mechanical seals which causes fluid leaks or failuresRuns quietly at less than 85 dBa with easy-to-use... Read More
Calculating price...
QUANTITY

About this item

The Husky 716 air operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of fluid and features center and end porting options.

  • Center- and end-porting
  • No mechanical seals which causes fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • 3/4 in (19.05 mm) center- and end-porting
  • No seals to leak or fail
  • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
1017_Manual_308573
1017_Manual_308573.pdf
1017_Manual_308589
1017_Manual_308589.pdf
Maximum Flow Rate (GPM) 16
Air Inlet Size (in) 1/4
Fluid Outlet Size (in) 3/4
Fluid Inlet Size (in) 3/4
Type Pneumatic Diaphragm Pump
Model Husky
Series 716
Air Exhaust Port Size (in) 3/8
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material Buna-N
Connection Type Threaded
Diaphragm Material Buna-N
Fluid Inlet Size (cm) 1.905
Fluid Inlet Size (mm) 19.05
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 1.905
Fluid Outlet Size (mm) 19.05
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Material Aluminum
For Use With Oil, Water, Anti-freeze, Washer Fluid, Used Oil
Manifold O-Ring Material PTFE
Material Aluminum
Maximum Air Consumption (SCFM) 28
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 400
Maximum Flow Rate (L/min) 60.6
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Maximum Solid Size (cm) 0.2383
Maximum Solid Size (in) 0.09375
Maximum Solid Size (mm) 2.4
Overall Height (in) 10.43
Power Source Air
Standards Met CE
Weight (lb) 8.5
Wetted Material Aluminum;Buna-N;PTFE
