Home Equipment & Storage Grease Pumps & Packages Graco 24J030 LD Series 50:1 35 lb (16 kg) Grease Pump - Stationary Package
PART 24J030

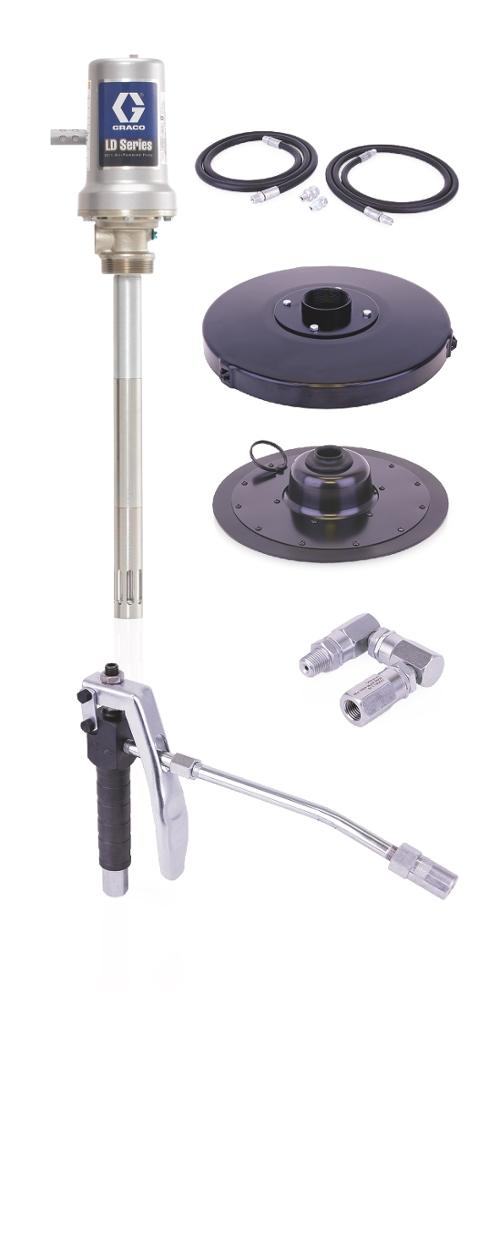

Graco 24J030 LD Series 50:1 35 lb (16 kg) Grease Pump - Stationary Package

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.Three Inch... Read More
Calculating price...
QUANTITY

About this item

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

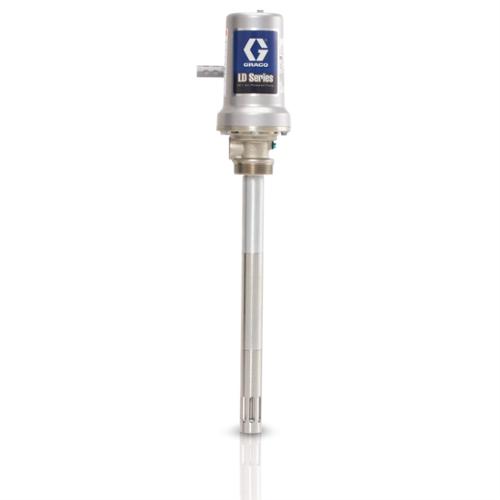

  • Three Inch Air Motor - Provides more power to create better flow.
  • Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
  • Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
  • Pilot Valves - Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
486_Manual_3A1335
486_Manual_3A1335.pdf
486_Manual_306708
486_Manual_306708.pdf
486_Manual_3A1334
486_Manual_3A1334.pdf
486_Manual_3A4657
486_Manual_3A4657.pdf
Fluid Outlet Size (in) 1/4
Pump Ratio 50:1
Type Piston Pump Package
Power Type Pneumatic
Air Inlet Size (in) 1/4
Container Size (lb) 35
Hose Length (ft) 6
Model LD
Application Grease
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Maximum Working Pressure (bar) 345
Maximum Working Pressure (kPa) 34500
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (psi) 5000
Wetted Material Steel;Brass;Nitrile Rubber;Polyurethane;UHMWPE;Acetal
