Home Equipment & Storage Hose & Cord Reels Graco 24P354 XD40™, Diesel Fuel, 1 in. (25 mm) Inlet, 1 in. X 50 ft. (25 mm X 15 m) Hose, NPT, Metallic Blue
PART 24P354

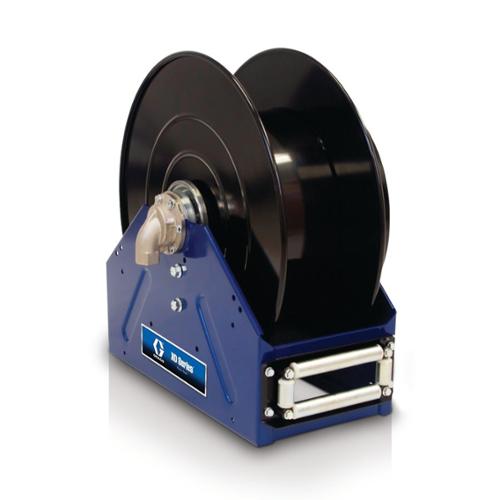

Graco 24P354 XD40™, Diesel Fuel, 1 in. (25 mm) Inlet, 1 in. X 50 ft. (25 mm X 15 m) Hose, NPT, Metallic Blue

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum-... Read More
Calculating price...
QUANTITY

About this item

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
3337_Manual_3A2990
3337_Manual_3A2990.pdf
Hose Length (ft) 50
Inlet Size (in) 1
Hose Inside Diameter (in) 1
Type Spring-Rewind Reel
Model XD
Series 40
Application Diesel Fuel
Color Metallic Blue
Dry Weight (lb) 125
Frame Type Box Frame
Hose Inside Diameter (mm) 25.4
Hose Length (m) 15
Hose Reel Type Reel with Hose
Includes Hose Yes
Inlet Size (mm) 25.4
Inlet Thread Type NPT
Maximum Working Pressure (psi) 250
Outlet Size (in) 1
Outlet Size (mm) 25.4
Overall Height (in) 26.13
Overall Height (mm) 664
Overall Length (in) 26.4
Overall Length (mm) 671
Overall Width (in) 16.54
Overall Width (mm) 420
Recommended Environment Indoor;Outdoor
Recommended Fluid Type Diesel Fuel
Reel Thread Type NPT
