Home Graco 24Z125 60 Quart Preset Meter - Includes Nozzle/Extension Kit - Rigid Extension - NPT
PART 24Z125

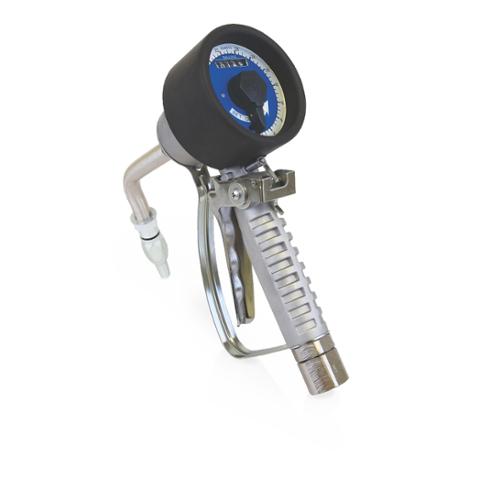

Graco 24Z125 60 Quart Preset Meter - Includes Nozzle/Extension Kit - Rigid Extension - NPT

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are... Read More
Calculating price...
QUANTITY

About this item

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).

  • Preset meter automatically shuts-off flow when preset quantity has been dispensed
  • Impact-resistant shroud resists against scratches and protects knob and dial from damage
  • Dial and face design made simple, easy to read and set
  • Durable aluminum cast housing is balanced and lightweight for a comfortable grip
  • Built-in totalizer to manage material usage
  • Inlet 1/2 in. NPT with swivel
  • Measures fluid in quarts
  • Features rigid extension with oil nozzle
  • 5 Year Warranty
2773_Manual_333492
2773_Manual_333492.pdf
Dispense Type Preset
Extension Type Rigid
Display Type Mechanical
Maximum Flow Rate (GPM) 8
Type Mechanical Metered Dispense Valve
Inlet Size (in) 1/2
Includes Bare Meter;Nozzle Kit
Inlet Size (cm) 1.27
Inlet Size (mm) 12.7
Inlet Thread Type NPT
Maximum Flow Rate (L/min) 30
Maximum Operating Temperature (°C) 70
Maximum Operating Temperature (°F) 160
Maximum Working Pressure (bar) 103.4
Maximum Working Pressure (kPa) 10340
Maximum Working Pressure (MPa) 10
Maximum Working Pressure (psi) 1500
Meter Accuracy (%) ±1%
Meter Pressure Loss (bar) 2
Meter Pressure Loss (kPa) 200
Meter Pressure Loss (psi) 30
Metering Gun Weight (kg) 1.58
Metering Gun Weight (lb) 3.5
Minimum Operating Temperature (°C) -45
Minimum Operating Temperature (°F) -50
Nozzle Type Manual
Outlet Size (cm) 1.27
Outlet Size (in) 0.75
Outlet Size (mm) 12.7
Outlet Thread Type ORB
Recommended Environment Indoor;Outdoor
Trigger Lock Locking
Valve Type Metered
Wetted Material Brass;Aluminum;Stainless Steel;TPE
