Home Equipment & Storage Dispense Meters & Control Valves Graco 25C903 EM8 Electronic Manual Oil/Antifreeze Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT
PART 25C903

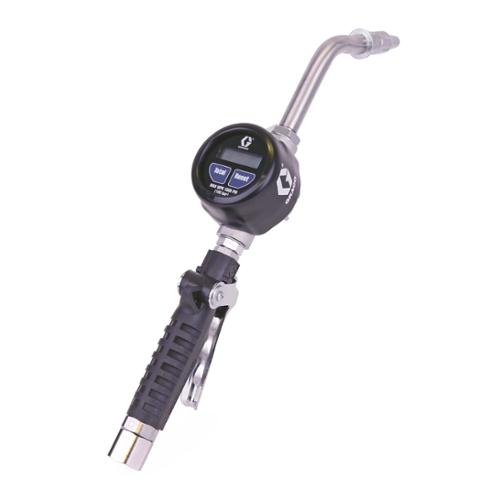

Graco 25C903 EM8 Electronic Manual Oil/Antifreeze Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

EM Series handheld and in-line meters are designed to last – from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco’s... Read More
Calculating price...
QUANTITY

About this item

EM Series handheld and in-line meters are designed to last – from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco’s EM Series meters are backed by our robust warranty and feature upgraded electronics and easy-to-read LCD with simple operator controls that measures in quarts, gallons, pints and liters.

  • Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
  • High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
  • Legacy Valve - 1/2 inch (13 mm) inlet, compatible with oil and Antifreeze.
  • Prevent Accidental Dispenses - Easy-to-hold locking handle.
  • Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
  • Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.
2774_Manual_3A5588
2774_Manual_3A5588.pdf
Display Type Electronic
Extension Type Rigid
Maximum Flow Rate (GPM) 8
Type Electronic Metered Dispense Valve
Inlet Size (in) 1/2
Model EM8
Series A
Approvals CE
Calibration Type Factory Calibrated
Fluid Inlet Thread Gender Female
Fluid Outlet Thread Gender Female
Includes Nozzle;Extension
Inlet Size (cm) 1.27
Inlet Size (mm) 12.7
Inlet Thread Type NPT
IP Rating 69K
Maximum Flow Rate (cc/min) 30283
Maximum Flow Rate (cc/sec) 505
Maximum Flow Rate (L/min) 30.3
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Maximum Recorded Dispense 19999
Maximum Storage Temperature (°C) 85
Maximum Storage Temperature (°F) 185
Maximum Totalizer 19999
Maximum Working Pressure (bar) 102
Maximum Working Pressure (kPa) 10200
Maximum Working Pressure (MPa) 10.2
Maximum Working Pressure (psi) 1500
Meter Accuracy (%) ±0.5
Meter Pressure Loss (bar) 2.1 Bar at 6 GPM
Meter Pressure Loss (psi) 30 PSI at 6 GPM
Meter Technology Oval Gear
Metering Gun Weight (kg) 1.36
Metering Gun Weight (lb) 3
Minimum Flow Rate (GPM) 0.25
Minimum Flow Rate (L/min) 0.95
Minimum Operating Temperature (°C) -30
Minimum Operating Temperature (°F) -22
Nozzle Type Manual
Outlet Size (cm) 1.905
Outlet Size (in) 3/4
Outlet Size (mm) 19.05
Outlet Thread Type ORB
Overall Height (cm) 13.3
Overall Height (in) 5.25
Overall Height (mm) 133
Overall Length (cm) 33
Overall Length (in) 13
Overall Length (mm) 330
Overall Width (cm) 9
Overall Width (in) 3.5
Overall Width (mm) 90
Recommended Environment Indoor/Outdoor
Trigger Lock Locking
Trigger Protection Type Lock Off Button
Unit of Measure Quart;Pint;Liter;Gallon
Valve Type Metered
Warranty 5 Years
Wetted Material Aluminum;Stainless Steel;Carbon Steel;Acetal;Nitrile Rubber;Geolast®
