PART 26C384

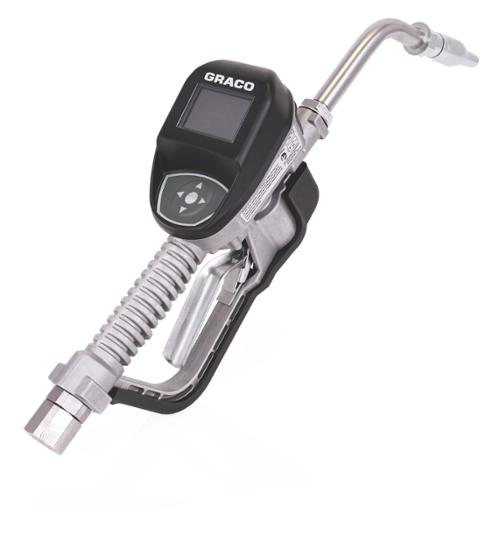

Graco 26C384 SDP8 Series Electronic Preset Oil Meter - Rigid Extension - 1/2 in. (13 mm) Inlet

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.Upgradeable—SD... Read More
Calculating price...
QUANTITY

About this item

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

  • Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system

  • Large, Intuitive Display—high-contrast display for low and bright light conditions

  • Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time

  • Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue

  • Reliable—time-tested Graco engineering

  • Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications

  • Long battery life—uses 4 AA easy-to-replace batteries

491_Manual_3A6673
491_Manual_3A6673.pdf
Dispense Type Preset
Extension Type Rigid
Inlet Size (in) 1/2
Maximum Flow Rate (GPM) 8
Type Electronic Metered Dispense Valve
Display Type Electronic
Model SDP8
Fluid Inlet Thread Gender Female
Fluid Outlet Thread Gender Female
Includes Nozzle, Rigid Extension
Inlet Size (cm) 1.27
Inlet Size (mm) 12.7
Inlet Thread Type NPT
Maximum Flow Rate (L/min) 30
Maximum Operating Temperature (°C) 70
Maximum Operating Temperature (°F) 158
Maximum Recorded Dispense 9999
Maximum Storage Temperature (°C) 70
Maximum Storage Temperature (°F) 158
Maximum Working Pressure (bar) 103.4
Maximum Working Pressure (kPa) 10340
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (psi) 1500
Meter Accuracy (%) ±0.5
Meter Technology Oval Gear
Metering Gun Weight (kg) 2.4
Metering Gun Weight (lb) 5.3
Minimum Flow Rate (GPM) 0.25
Minimum Flow Rate (L/min) 0.9
Minimum Operating Temperature (°C) -16
Minimum Operating Temperature (°F) 4
Nozzle Type Oil Automatic Quick-Close
Outlet Thread Type Straight Thread O-Ring Boss
Overall Height (cm) 14.6
Overall Height (in) 5.75
Overall Height (mm) 146
Overall Length (cm) 33
Overall Length (in) 13
Overall Length (mm) 330
Overall Width (cm) 9.5
Overall Width (in) 3.75
Overall Width (mm) 95
Product Type Meter
Recommended Environment Indoor
Trigger Lock Locking
Trigger Protection Type Guard
Unit of Measure Quart;Pint;Gallon;Liter
Valve Type Metered
Warranty 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
Wetted Material Aluminum;Stainless Steel;PBT/PC;Zinc;Nitrile Rubber;CS
