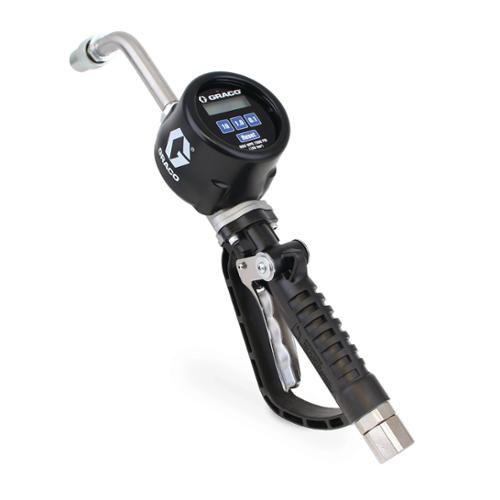

Graco 273165 PM™ 20 Electronic Preset Oil Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

Use Graco’s PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.Proven in Harsh Conditions - Sealed electronics (IP69K)... Read More
Calculating price...
QUANTITY

About this item

Use Graco’s PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.

  • Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.

  • Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.

  • Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.

  • Easy Valve Operation - Ergonomic four-finger trigger for user comfort protected by a robust full length trigger guard.

  • Durable Cast Body - Designed for heavy duty and harsh applications.

  • High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).

  • Long Battery Life - Features four easily-replaceable AA batteries.

2777_Manual_3A8307
2777_Manual_3A8307.pdf
Extension Type Rigid
Display Type Electronic
Inlet Size (in) 1/2
Dispense Type Preset
Type Electronic Metered Dispense Valve
Maximum Flow Rate (GPM) 20
Series 20
Calibration Type Factory Calibrated
Fluid Inlet Thread Gender Female
Fluid Outlet Thread Gender Female
Includes Nozzle;Extension
Inlet Size (cm) 1.27
Inlet Size (mm) 12.7
Inlet Thread Type NPT
IP Rating 69K
Maximum Flow Rate (cc/min) 75708
Maximum Flow Rate (cc/sec) 1262
Maximum Flow Rate (L/min) 75.7
Maximum Operating Temperature (°C) 52
Maximum Operating Temperature (°F) 125
Maximum Recorded Dispense 19999
Maximum Storage Temperature (°C) 85
Maximum Storage Temperature (°F) 185
Maximum Totalizer 19999
Maximum Working Pressure (bar) 102
Maximum Working Pressure (kPa) 10340
Maximum Working Pressure (MPa) 10
Maximum Working Pressure (psi) 1500
Meter Accuracy ±0.5
Meter Accuracy (%) ±0.5
Meter Pressure Loss (bar) 10.3 Bar at 12 GPM
Meter Pressure Loss (psi) 150 PSI at 12 GPM
Meter Technology Oval Gear
Metering Gun Weight (kg) 2.4
Metering Gun Weight (lb) 5.2
Minimum Flow Rate (GPM) 0.25
Minimum Operating Temperature (°C) -29
Minimum Operating Temperature (°F) -20
Nozzle Type Manual
Outlet Size (cm) 1.905
Outlet Size (in) 3/4
Outlet Size (mm) 19.05
Outlet Thread Type ORB
Overall Height (cm) 18.3
Overall Height (in) 7.2
Overall Height (mm) 183
Overall Length (cm) 54.4
Overall Length (in) 21.4
Overall Length (mm) 544
Overall Width (cm) 10.4
Overall Width (in) 4.1
Overall Width (mm) 103.5
Recommended Environment Indoor/Outdoor
Trigger Lock Locking
Trigger Protection Type Lock Off Button
Unit of Measure Quart;Pint;Liter;Gallon
Valve Type Metered
Warranty 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
Wetted Material Aluminum;Stainless Steel;Carbon Steel;Acetal;Nitrile Rubber;Geolast®
