Home Equipment & Storage Pumps & Packages Graco 647731 Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation, Oil Transfer, BN/AC/TPE
PART 647731

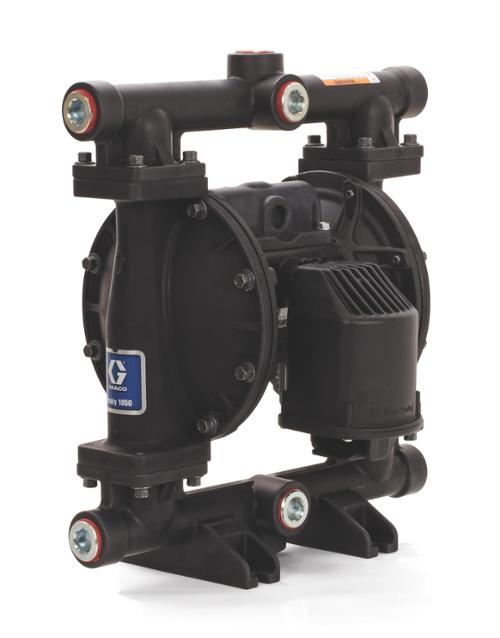

Graco 647731 Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation, Oil Transfer, BN/AC/TPE

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm... Read More
Calculating price...
QUANTITY

About this item

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

  • Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
  • Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
  • One-Piece Center Section - Eliminates air leaks for more efficient operation
  • Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
  • Multiple Ports - Increased number of ports for installation flexibility
  • Optional Features - DataTrak™ (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
  • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
  • 30% more efficient than the market leader
  • 20% increase in fluid flow compared to the Husky 1040
3274_Manual_313597
3274_Manual_313597.pdf
3274_Manual_312877
3274_Manual_312877.pdf
3274_Manual_313435
3274_Manual_313435.pdf
3274_Manual_313598
3274_Manual_313598.pdf
3274_Manual_313648
3274_Manual_313648.pdf
3274_Manual_313840
3274_Manual_313840.pdf
3274_Manual_332167
3274_Manual_332167.pdf
3274_Manual_332168
3274_Manual_332168.pdf
3274_Manual_332169
3274_Manual_332169.pdf
3274_Manual_332170
3274_Manual_332170.pdf
3274_Manual_332171
3274_Manual_332171.pdf
3274_Manual_332172
3274_Manual_332172.pdf
3274_Manual_332173
3274_Manual_332173.pdf
3274_Manual_332174
3274_Manual_332174.pdf
3274_Manual_332175
3274_Manual_332175.pdf
3274_Manual_332176
3274_Manual_332176.pdf
3274_Manual_332177
3274_Manual_332177.pdf
3274_Manual_332178
3274_Manual_332178.pdf
3274_Manual_332179
3274_Manual_332179.pdf
3274_Manual_332180
3274_Manual_332180.pdf
3274_Manual_332181
3274_Manual_332181.pdf
3274_Manual_332182
3274_Manual_332182.pdf
3274_Manual_332183
3274_Manual_332183.pdf
3274_Manual_332184
3274_Manual_332184.pdf
3274_Manual_332185
3274_Manual_332185.pdf
3274_Manual_332186
3274_Manual_332186.pdf
3274_Manual_332187
3274_Manual_332187.pdf
3274_Manual_332188
3274_Manual_332188.pdf
3274_Manual_333411
3274_Manual_333411.pdf
3274_Manual_333412
3274_Manual_333412.pdf
3274_Manual_334148
3274_Manual_334148.pdf
3274_Manual_334149
3274_Manual_334149.pdf
3274_Manual_334393
3274_Manual_334393.pdf
3274_Manual_334394
3274_Manual_334394.pdf
3274_Manual_334395
3274_Manual_334395.pdf
3274_Manual_334396
3274_Manual_334396.pdf
3274_Manual_334398
3274_Manual_334398.pdf
3274_Manual_334401
3274_Manual_334401.pdf
3274_Manual_334402
3274_Manual_334402.pdf
3274_Manual_334403
3274_Manual_334403.pdf
3274_Manual_334404
3274_Manual_334404.pdf
3274_Manual_334405
3274_Manual_334405.pdf
3274_Manual_334406
3274_Manual_334406.pdf
3274_Manual_334407
3274_Manual_334407.pdf
3274_Manual_334409
3274_Manual_334409.pdf
3274_Manual_334412
3274_Manual_334412.pdf
3274_Manual_334413
3274_Manual_334413.pdf
3274_Manual_334414
3274_Manual_334414.pdf
3274_Manual_334415
3274_Manual_334415.pdf
3274_Manual_334416
3274_Manual_334416.pdf
3274_Manual_334417
3274_Manual_334417.pdf
3274_Manual_334418
3274_Manual_334418.pdf
3274_Manual_334420
3274_Manual_334420.pdf
3274_Manual_334423
3274_Manual_334423.pdf
3274_Manual_334424
3274_Manual_334424.pdf
3274_Manual_334425
3274_Manual_334425.pdf
3274_Manual_334426
3274_Manual_334426.pdf
3274_Manual_334427
3274_Manual_334427.pdf
3274_Manual_334428
3274_Manual_334428.pdf
3274_Manual_334429
3274_Manual_334429.pdf
3274_Manual_334431
3274_Manual_334431.pdf
3274_Manual_334434
3274_Manual_334434.pdf
3274_Manual_334435
3274_Manual_334435.pdf
3274_Manual_334436
3274_Manual_334436.pdf
3274_Manual_334462
3274_Manual_334462.pdf
3274_Manual_334463
3274_Manual_334463.pdf
3274_Manual_334464
3274_Manual_334464.pdf
3274_Manual_334465
3274_Manual_334465.pdf
3274_Manual_3A0005
3274_Manual_3A0005.pdf
3274_Manual_3A0410
3274_Manual_3A0410.pdf
3274_Manual_3A0411
3274_Manual_3A0411.pdf
3274_Manual_3A0549
3274_Manual_3A0549.pdf
3274_Manual_3A0550
3274_Manual_3A0550.pdf
3274_Manual_3A0551
3274_Manual_3A0551.pdf
3274_Manual_3A0552
3274_Manual_3A0552.pdf
3274_Manual_3A0553
3274_Manual_3A0553.pdf
3274_Manual_3A0554
3274_Manual_3A0554.pdf
3274_Manual_3A0555
3274_Manual_3A0555.pdf
3274_Manual_3A0556
3274_Manual_3A0556.pdf
3274_Manual_3A0557
3274_Manual_3A0557.pdf
3274_Manual_3A0558
3274_Manual_3A0558.pdf
3274_Manual_3A0559
3274_Manual_3A0559.pdf
3274_Manual_3A0560
3274_Manual_3A0560.pdf
3274_Manual_3A0561
3274_Manual_3A0561.pdf
3274_Manual_3A0562
3274_Manual_3A0562.pdf
3274_Manual_3A0563
3274_Manual_3A0563.pdf
3274_Manual_3A0564
3274_Manual_3A0564.pdf
3274_Manual_3A0565
3274_Manual_3A0565.pdf
3274_Manual_3A0566
3274_Manual_3A0566.pdf
3274_Manual_3A0567
3274_Manual_3A0567.pdf
3274_Manual_3A0568
3274_Manual_3A0568.pdf
3274_Manual_3A0569
3274_Manual_3A0569.pdf
3274_Manual_3A0570
3274_Manual_3A0570.pdf
3274_Manual_3A0571
3274_Manual_3A0571.pdf
3274_Manual_3A0572
3274_Manual_3A0572.pdf
3274_Manual_3A0624
3274_Manual_3A0624.pdf
3274_Manual_3A0625
3274_Manual_3A0625.pdf
3274_Manual_3A0626
3274_Manual_3A0626.pdf
3274_Manual_3A0627
3274_Manual_3A0627.pdf
3274_Manual_3A0628
3274_Manual_3A0628.pdf
3274_Manual_3A0629
3274_Manual_3A0629.pdf
3274_Manual_3A1328
3274_Manual_3A1328.pdf
3274_Manual_3A1329
3274_Manual_3A1329.pdf
3274_Manual_3A1330
3274_Manual_3A1330.pdf
3274_Manual_3A2578
3274_Manual_3A2578.pdf
3274_Manual_3A2714
3274_Manual_3A2714.pdf
3274_Manual_3A2888
3274_Manual_3A2888.pdf
3274_Manual_3A2889
3274_Manual_3A2889.pdf
3274_Manual_3A4779
3274_Manual_3A4779.pdf
3274_Manual_3A4780
3274_Manual_3A4780.pdf
Maximum Flow Rate (GPM) 50
Fluid Inlet Size (in) 1
Pump Ratio 1:1
Type Pneumatic Diaphragm Pump
Fluid Outlet Size (in) 1
Air Inlet Size (in) 1/2
Model Husky
Series 1050
Air Exhaust Port Size (in) 3/4
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material Acetal
Center Section Material Aluminum
Connection Type Threaded
Diaphragm Material TPE (Hytrel)
Fluid Inlet Size (cm) 2.54
Fluid Inlet Size (mm) 25.4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 2.54
Fluid Outlet Size (mm) 25.4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Material Aluminum
For Use With Oil, Waste Oil
Material Aluminum
Maximum Air Consumption (SCFM) 25
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 280
Maximum Flow Rate (L/min) 189
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Solid Size (cm) 0.3175
Maximum Solid Size (in) 0.125
Maximum Solid Size (mm) 3.175
Overall Height (in) 15.9
Power Source Air
Seat Material Buna-N
Standards Met UL
Weight (lb) 23
Wetted Material Aluminum;TPC-ET;Acetal;PTFE;Buna-N
