Our uniquely designed oil tanks are the safest and most reliable on the market. The outer tank is made out of leakproof weld-free galvanized steel and roll seamed with an oil and fire-resistant seal. It can contain at least 110% of the capacity of the inner tank for maximum protection. The inner tank is made of blow-molded, high-density, seamless polyethylene that is leakproof and will never corrode. And, our compact tanks are available in several different sizes providing more flexibility for placement in any garage, service station, or lube shop. The Roth DWT storage tank is certified to UL SU2258 and is designed to store liquids that are classified as class II class III combustibles. These include automotive lubricating oils, motor oils, hydraulic fluids, waste oil products, diesel, biofuels, DEF, and ATF. The Roth DWT is compliant with NFPA 30 and 30A, subject to building code approval by the local authority having jurisdiction.

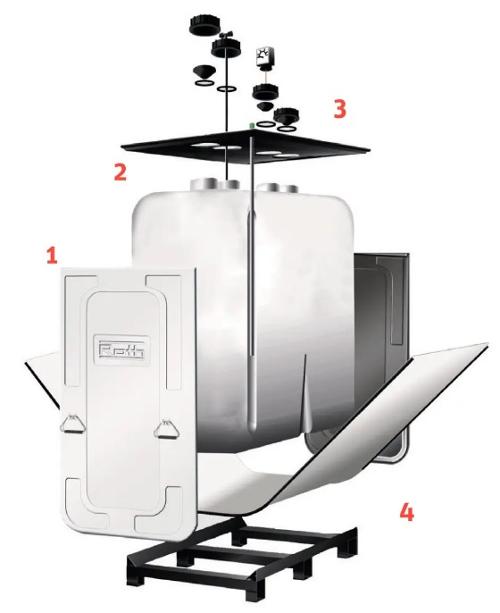

Roth Double Wall Tank Features
- Completely sealed, every one of our tanks is pressure tested and meets exacting quality control standards.
- Weld-free galvanized steel outer tank capable of holding 110% of the primary tank.
- Seamless high-density polyethylene inner tank.
- Highly visible optical leak alarm.
- Corrosion-resistant steel filling system with external 2" thread, allowing for an even level in each tank when installed in groups.
- Up to 50% lighter than conventional steel tanks.
- Wide handles on each end facilitates transport and handling.
- Removable base facilitates access to tight spaces and offers greater stability.
- Compact and economical design. (8 sq. ft. for 1000L)
- No fittings below the oil line.
- Unique expansion system ensures storage capacity and faster, easier fill-ups.
- Optional Roth Tank Cover for outdoor use (must purchase separately)
Includes:
- Roth Double Wall Tank with Optical Leak Alarm
- Level Gauge
- Lockable Fill Cap with Vent
Nom. Capacity U.S. Gal (liters)
165 (620)
Length: inches (cm)
29 (74)
Width: inches (cm)
28 (72)
Height: inches (cm)
61 (155)
Min. Height: Inches (cm)
66 (168)
Tank Weight: lbs. (kg)
132 (60)
Shipping Weight: lbs. (kg)
143 (65)
