Home Equipment & Storage DEF Systems Graco HSDD5B XD30™, DEF, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue
PART HSDD5B

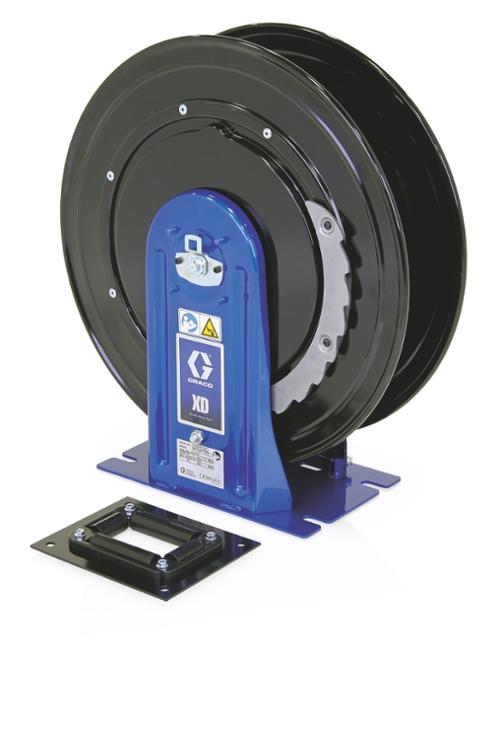

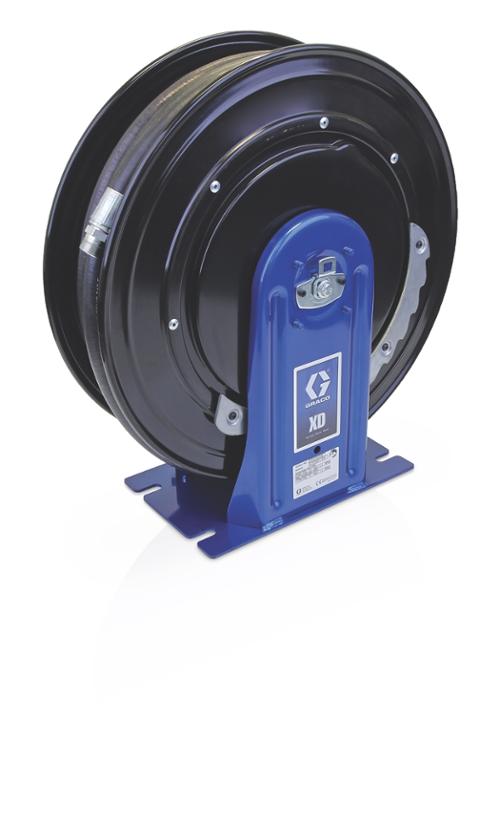

Graco HSDD5B XD30™, DEF, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters)... Read More
Calculating price...
QUANTITY

About this item

Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
492_Manual_3A1767
492_Manual_3A1767.pdf
Inlet Size (in) 3/4
Type Spring-Rewind Reel
Hose Length (ft) 50
Hose Inside Diameter (in) 3/4
Model XD
Series 30
Application Diesel Fuel
Color Metallic Blue
Frame Type Dual Pedestal
Hose Inside Diameter (mm) 19.05
Hose Length (m) 15
Hose Reel Type Reel with Hose
Includes Hose Yes
Inlet Size (mm) 19.05
Inlet Thread Type BSPP
Maximum Working Pressure (psi) 50
Mount Location Truck Mount;Bench Mount
Outlet Size (in) 3/4
Outlet Size (mm) 19.05
Overall Height (in) 23.10
Overall Height (mm) 588
Overall Length (in) 22.12
Overall Length (mm) 561.73
Overall Width (in) 9.0
Overall Width (mm) 229
Recommended Environment Indoor;Outdoor
Recommended Fluid Type DEF
Reel Thread Type NPT
