Home Equipment & Storage Hose & Cord Reels Graco HSLE3B XD30™, Fuel/Evacuation, 3/4 in. (19 mm) Inlet, 1 in. X 30 ft. (25 mm X 9 m) Hose, NPT, Truck/Bench Mount, Metallic Blue
PART HSLE3B

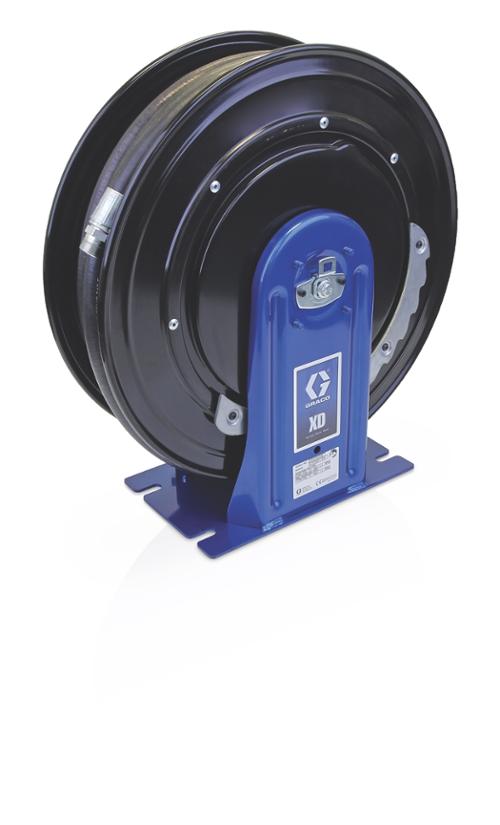

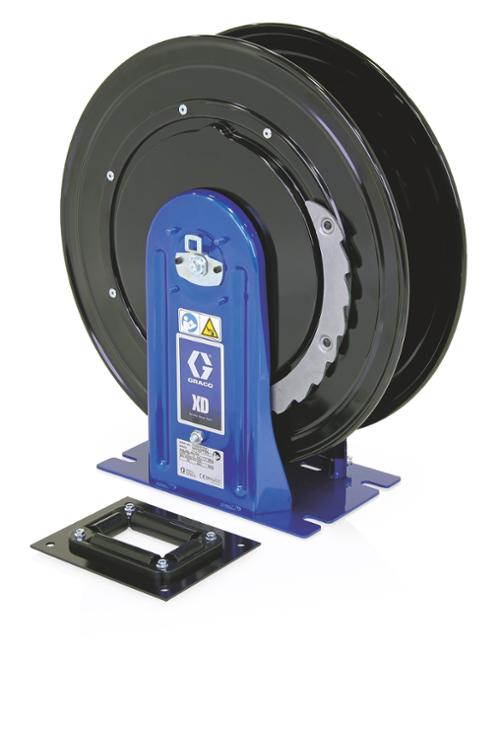

Graco HSLE3B XD30™, Fuel/Evacuation, 3/4 in. (19 mm) Inlet, 1 in. X 30 ft. (25 mm X 9 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters)... Read More
Calculating price...
QUANTITY

About this item

Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
3275_Manual_3A0138
3275_Manual_3A0138.pdf
Hose Inside Diameter (in) 1
Hose Length (ft) 30
Inlet Size (in) 3/4
Type Spring-Rewind Reel
Model XD
Series 30
Application Diesel Fuel
Color Metallic Blue
Dry Weight (lb) 98
Frame Type Dual Pedestal
Hose Inside Diameter (mm) 25.4
Hose Length (m) 9
Hose Reel Type Reel with Hose
Includes Hose Yes
Inlet Size (mm) 19.05
Inlet Thread Type NPSM
Maximum Working Pressure (psi) 125
Mount Location Truck Mount;Bench Mount
Outlet Size (in) 1
Outlet Size (mm) 25.4
Overall Height (in) 27.6
Overall Height (mm) 701
Overall Length (in) 25.96
Overall Length (mm) 659
Overall Width (in) 9.0
Overall Width (mm) 229
Recommended Environment Indoor;Outdoor
Recommended Fluid Type Fuel;Evac
Reel Thread Type NPT
