Home Graco SDM65B SDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Overhead Mount, Metallic Blue
PART SDM65B

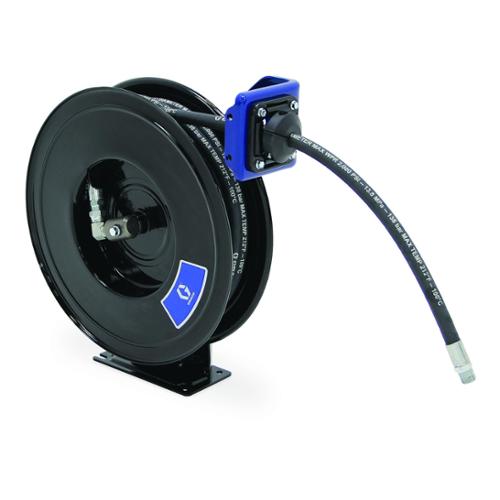

Graco SDM65B SDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Overhead Mount, Metallic Blue

Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colorsLow-Friction Cartridge Swivel - Provides... Read More
Calculating price...
QUANTITY

About this item

Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors
  • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
  • Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look.
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Adjustable Arm - Easily change the arm position for your application
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
2783_Manual_3A8626
2783_Manual_3A8626.pdf
Hose Length (ft) 50
Type Spring-Rewind Reel
Inlet Size (in) 1/2
Hose Inside Diameter (in) 1/2
Model SDX
Series 20
Application Oil
Color Metallic Blue
Frame Type Single Pedestal
Hose Inside Diameter (mm) 12.7
Hose Length (m) 15
Hose Reel Type Reel with Hose
Includes Hose Yes
Inlet Size (mm) 12.7
Inlet Thread Gender Male
Inlet Thread Type NPSM
Maximum Temperature (°C) 87
Maximum Temperature (°F) 190
Maximum Working Pressure (psi) 2000
Minimum Temperature (°C) -28
Minimum Temperature (°F) -20
Mount Location Overhead Mount
Outlet Size (in) 1/2
Outlet Size (mm) 12.7
Outlet Thread Gender Male
Outlet Thread Type NPT
Overall Height (in) 21.8
Overall Height (mm) 554
Overall Length (in) 19.2
Overall Length (mm) 487
Overall Width (in) 7
Overall Width (mm) 177
Recommended Environment Indoor;Limited Outdoor
Recommended Fluid Type Oil
Reel Thread Type NPT
Wetted Parts Zinc-Plated Steel;Anodized Aluminum;Nitrile Rubber
