Home Equipment & Storage Graco HEM004 LDX™ Series, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT
PART hem004

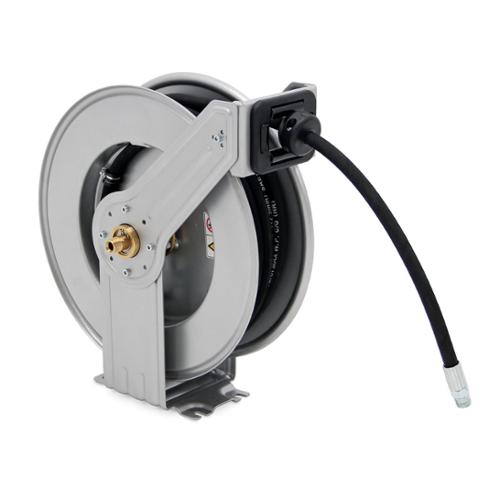

Graco HEM004 LDX™ Series, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT

Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction.Dual Pedestal Frame - Ribbed metal for increased... Read More
Calculating price...
QUANTITY

About this item

Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction.
  • Dual Pedestal Frame - Ribbed metal for increased stability and robustness.
  • External Swivel Housing - Quickly access swivel seal for faster repairs.
  • Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation.
  • Adjustable Arm - Easily change to one of six arm positions to fit your application.
  • Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.
3991_Manual_3A8216
3991_Manual_3A8216.pdf
Hose Length (ft) 50
Hose Inside Diameter (in) 1/2
Type Spring-Rewind Reel
Inlet Size (in) 1/2
Model LDX
Application Oil
Color Grey
Dry Weight (lb) 48
Frame Type Dual Pedestal
Hose Inside Diameter (mm) 12.7
Hose Length (m) 15
Hose Reel Type Reel with Hose
Includes Hose Yes
Inlet Size (mm) 12.7
Inlet Thread Gender Male
Inlet Thread Type NPT
Maximum Temperature (°C) 100
Maximum Temperature (°F) 212
Maximum Working Pressure (psi) 1500
Minimum Temperature (°C) -40
Minimum Temperature (°F) -40
Mount Location Truck Mount;Bench Mount
Outlet Size (in) 1/2
Outlet Size (mm) 12.7
Outlet Thread Gender Male
Outlet Thread Type NPT
Overall Height (in) 19
Overall Height (mm) 483
Overall Length (in) 17.5
Overall Length (mm) 445
Overall Width (in) 9.4
Overall Width (mm) 239
Recommended Environment Indoor
Recommended Fluid Type Oil
Reel Thread Type NPT
Wetted Parts Zinc-Plated Steel;Brass;Polyurethane;Nitrile Rubber
